Helium extraction

THIS PAGE IS UNDER CONSTRUCTION

Helium is extracted from the selected crystals by thermal degassing in vacuum. The extraction line is full metall tubulation system that contains the following parts:

  1. pump system (for evacuation between measurements),
  2. vacuum gauges,
  3. getters and cold fingers,
  4. ion pumps,
  5. four different furnaces for degassing of minerals,
  6. mass spectrometer,
  7. tanks of standard gases with pipettes.

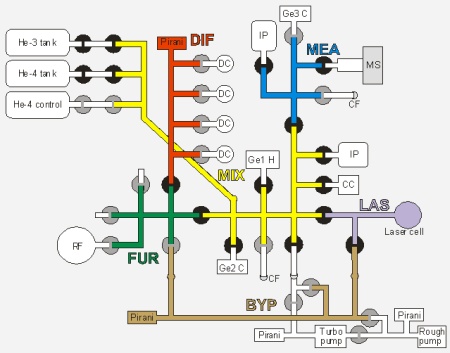

Topologic sketch of the He-extraction line. Different colors indicate the major volumes.

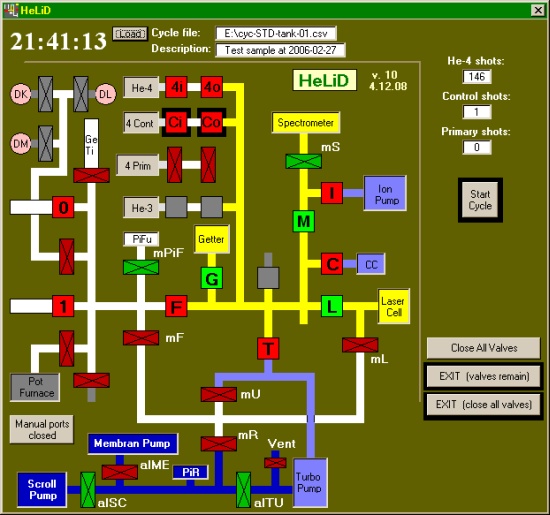

Main window of the operating software of the helium-extraction line.

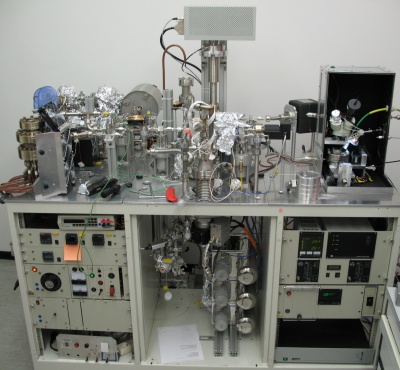

The helium-extraction line

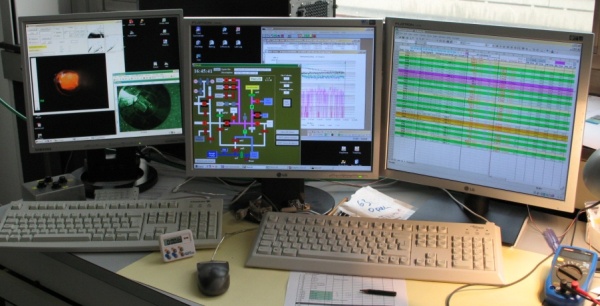

The control bench of the extraction line.

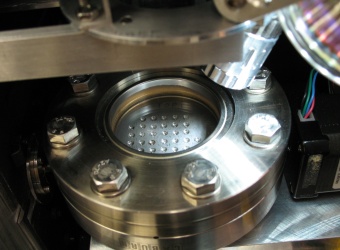

Sample holding planchet in the laser cell
Pt capsule glows by the heating of IR laser (in the window of the laser-control software)

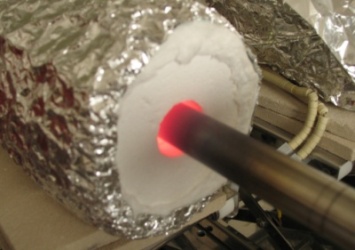

He-extraction in tube furnace

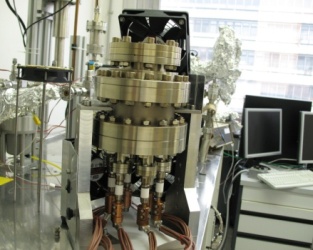

Diffusion cells
Tantalum-ribbon furnace (Nancy-type)

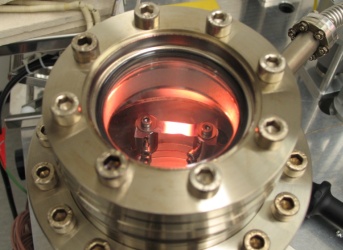

Glowing Ta heating element and sample in the ribbon furnace
